2. Alkeria design and manufacture high-performance machine vision cameras for scientific and industrial applications. Our camera product line has evolved over the years: when it was time to adopt a new standard interface among our cameras, we decided to introduce USB3 as a common interface.

Small and powerful

ARIA represents Alkeria’s answer to the increasing demand of affordable, ultracompact, ultralight and easy to integrate cameras. Choose between the most common and requested sensors, get all the benefits of USB3 interface and Alkeria’s smart I/O. Top quality delivered in the size of a coin, the weight of a feather and at convenient price. A camera born for embedded vision, inspection and OEM design.

ARIA is directly powered by the USB3 bus, eliminating the need for external power adapters. USB3 provides the most cost-effective widespread interface, pushing speed performances to top level.

Powerful on-board image processing

ARIA provides powerful on-board user-controlled image processing: color independent LUTs, gamma correction, white balance, brightness, contrast, sharpness, saturation.

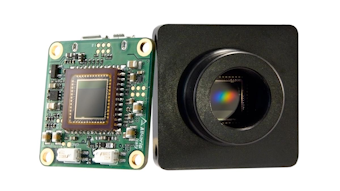

Board-Level Camera PISA, Italy, Feb. 11, 2021 — The ARIA board-level camera from Alkeria srl is now available in a full housing format. Made entirely of anodized aluminum and machined from solid, the back cover is coupled to the front lens mount adapter for a completely enclosed camera board, protecting it from dust and increasing its thermal dissipation capabilities.

Driver and Software

An easy-to-use set of software API is available, which allows developers to quickly produce fast and well readable code on Windows (VC++/C#/VB.Net) and Linux (C++). Our Software Development Kit provided with ARIA cameras is fully compatible with Cognex VisionPro, MVTech Halcon and other major machine vision software for industrial application.

Accessories

ARIA accessories available upon request:

• Complete casing

Possible application fields:

Medical imaging

Pick & place applications

3D scan

Custom applications

Features

USB3 interface

Radiant laptops touch screen. Establishing as a new standard in vision, USB3 allows high performances, lower costs and ease of use.

Compact, light and versatile

ARIA comes in the size of a coin, weighting less than 5 g (without lens adapters), and available in board level format or completed with C-mount and S-mount adapters.

Fast global-shutter CMOS technology

Alkeria Srl Driver Login

Unknown driver download windows 7. ARIA is available with the most sought-after sensors in the field, such as e2V Sapphire and Ruby series and SONY Pregius® IMX series, allowing great performance and image quality.

On board image pre-processing

Like all Alkeria cameras, even the light, small and convenient ARIA performs all of its image pre-processing on board, without loading your CPU with heavy calculation.

Versatile I/O

With 1 opto-isolated input and output and 2 general purpose I/O, ARIA series offers unprecedented flexibility for interfacing to outer world signals: direct encoder readout, serial communication and strobed lighting have never been so easy. Mascom driver download for windows.

Smart triggering

Alkeria Srl Driver Licence

User can choose among a long list of triggering mechanisms. Acquisition can be driven by I/O levels, edges and encoder position. Furthermore, the frequency of triggering signals can be internally converted to solve even the most challenging problem.

Complete protection

Thanks to available accessories, ARIA cameras can be equipped with a complete casing, entirely made in anodized aluminum, machined from solid, to protect them from external environment. A back cover is coupled to the front lens mount adapter to completely enclose the camera board, protecting it from dust while providing better thermal dissipation capabilities.

Model	A1ES-M	A1ES-C	A2ES-M	A2ES-C	A1ER-M	A1ER-C	A04S-M	A04S-C	A15S-M	A15S-C
Resolution	1288x1032		1608x1208		1288x1032		728x544		1456x1088
Sensor	EV76C560		EV76C570		EV76C661		IMX287		IMX273
Format	1 / 1.8 '						1 / 2.9 '
Pixel size	5.3 x 5.3 µm2		4.5 x 4.5 µm2		5.3 x 5.3 µm2		6.9 x 6.9 µm2		3.45 x 3.45 µm2
Color / Mono	Mono	Color	Mono	Color	Mono (NIR)	Color	Mono	Color	Mono	Color
Max Frame Rate	62 fps		51 fps		62 fps		522 fps	458 fps	237 fps	118 fps
Pixel Format	Mono8, Mono16	YUV 4:2:2, RGB24, Mono16, RAW 16	Mono8, Mono16	YUV 4:2:2, RGB24, Mono16, RAW 16	Mono8, Mono16	YUV 4:2:2, RGB24, Mono16, RAW 16	Mono8, Mono16	YUV 4:2:2, RGB24, Mono16, RAW 16	Mono8, Mono16	YUV 4:2:2, RGB24, Mono16, RAW 16
A/D Conversion	10 bit						8 - 10 - 12 bit
Synchronization	External trigger, software trigger
Shutter Control	16 µs ÷ 0,9 s (global shutter)						18 µs ÷ 5 s (global shutter)			22 µs ÷ 5 s (global shutter)
Power Supply	< 1,2 W, powered by USB3 interface						< 2 W, powered by USB3 interface
Inputs / Outputs	2 I/O, LVTTL levels (configurable GPIO or RS232 or direct encoder interface), 1 in (isolated), 1 out (isolated)
Formats	Board level | C-mount only | S-mount only | Cased with C-mount | Cased with S-mount
Interface	USB3.1 gen1
Weight	< 5 g (board level)
Size	26,4 mm x 26,4 mm x 7,8 mm (board level), 29 mm x 29 mm x 24,6 mm (with C-mount adapter), 29 mm x 29 mm x 19,6 mm (with S-mount adapter)
Conformity	RoHS
Controls	Shutter, gain, brightness, contrast, saturation, LUT and gamma correction, white balance
Operative Temp	0 ÷ 50 °C

Available format codes

Board level

• A1ES-M
• A1ES-C
• A2ES-M
• A2ES-C
• A1ER-M
• A1ER-C
• A04S-M
• A04S-C
• A15S-M
• A15S-C

C-mount

• A1ES-M-C
• A1ES-C-C
• A2ES-M-C
• A2ES-C-C
• A1ER-M-C
• A1ER-C-C
• A04S-M-C
• A04S-C-C
• A15S-M-C
• A15S-C-C

S-mount

• A1ES-M-S
• A1ES-C-S
• A2ES-M-S
• A2ES-C-S
• A1ER-M-S
• A1ER-C-S
• A04S-M-S
• A04S-C-S
• A15S-M-S
• A15S-C-S

Cased with C-mount

• A1ES-M-CH
• A1ES-C-CH
• A2ES-M-CH
• A2ES-C-CH
• A1ER-M-CH
• A1ER-C-CH
• A04S-M-CH
• A04S-C-CH
• A15S-M-CH
• A15S-C-CH

Cased with S-mount

• A1ES-M-SH
• A1ES-C-SH
• A2ES-M-SH
• A2ES-C-SH
• A1ER-M-SH
• A1ER-C-SH
• A04S-M-SH
• A04S-C-SH
• A15S-M-SH
• A15S-C-SH

Sensor specifications (b/w and color) are extracted from the data sheet of the manufacturer excluding lens and filter.

Alkeria Srl Driver Job

Board level

C-mount lens adapter

Alkeria Srl Driver Wanted

S-mount lens adapter

Cased with C-mount

All dimensions are expressed in millimeters.
Camera specifications are subject to change without notice.
